Platform Load Testing Guide
#Prerequisites
To have better insight into platform metrics, deploying Prometheus and Grafana beforehand is recommended.
#Test Suite
Every test case contains the recommended tool and a list of endpoints to benchmark and metrics to collect.
Test A: Benchmark public API as guest
Suggested tool: Hey
Number of clients: 1 x 20,000 request per second
Example: hey -c 20000 -n 150000 http://envoy.example-namespace:10000/api/v2/peatio/public/markets
Metrics to collect: Number of requests per second, CPU load chart, Latency per page chart
| Endpoints |
|---|
http://envoy.example-namespace:10000/api/v2/peatio/public/markets |
http://envoy.example-namespace:10000/api/v2/peatio/public/markets/tickers |
http://envoy.example-namespace:10000/api/v2/peatio/public/currencies |
http://envoy.example-namespace:10000/api/v2/barong/resource/users/me |
http://envoy.example-namespace:10000/api/v2/peatio/public/trading_fees |
http://envoy.example-namespace:10000/api/v2/peatio/public/markets/btckrw/trades |
Test B: Directly benchmark API as a user
Suggested tool: Locust with 20 workers Number of clients: 20 x 1,000 request per second Metrics to collect: Number of requests per second, CPU load chart, Latency per page chart
| Endpoints |
|---|
http://peatio-rails.example-namespace:8080/api/v2/peatio/account/balances |
http://barong.example-namespace:8080/api/v2/resource/users/me |
Test C: Open 20,000 connections on Rango
Suggested tool: Artillery with 3 workers Number of clients: 20,000 WebSocket client subscriptions Metrics to collect: Memory heap chart, CPU load chart
| Endpoints |
|---|
ws://rango.example-namespace:8080?stream=global.tickers |
#Reference Results
You can find reference results for all the aforementioned load tests below.
Setup
All the tests were executed on a Kubernetes cluster of 12 nodes with 8 CPU cores and 16 GB of RAM each.
| Component | Replicas |
|---|---|
| Peatio | 24 |
| Barong | 24 |
| Rango | 12 |
| Envoy | 8 |
Test A
| API endpoint | Number of connections | Requests per second | Number of replicas |
|---|---|---|---|
| /markets | 2000 | 4337.5128 | 24 |
| /markets | 5000 | 4281.5957 | 24 |
| /markets | 20000 | 2862.8619 | 24 |
| /markets/tickers | 1000 | 8517.8458 | 24 |
| /markets/tickers | 2000 | 9371.2538 | 24 |
| /markets/tickers | 5000 | 12177.0153 | 24 |
| /markets/tickers | 20000 | 8296.1285 | 24 |
| /currencies | 2000 | 2711.7451 | 24 |
| /currencies | 5000 | 2958.8832 | 24 |
Test B
| API endpoint | Number of connections | Requests per second | Number of replicas |
|---|---|---|---|
| /account/balances | 2000 | 4356.0711 | 24 |
| /users/me | 2000 | 1939.8766 | 12 |

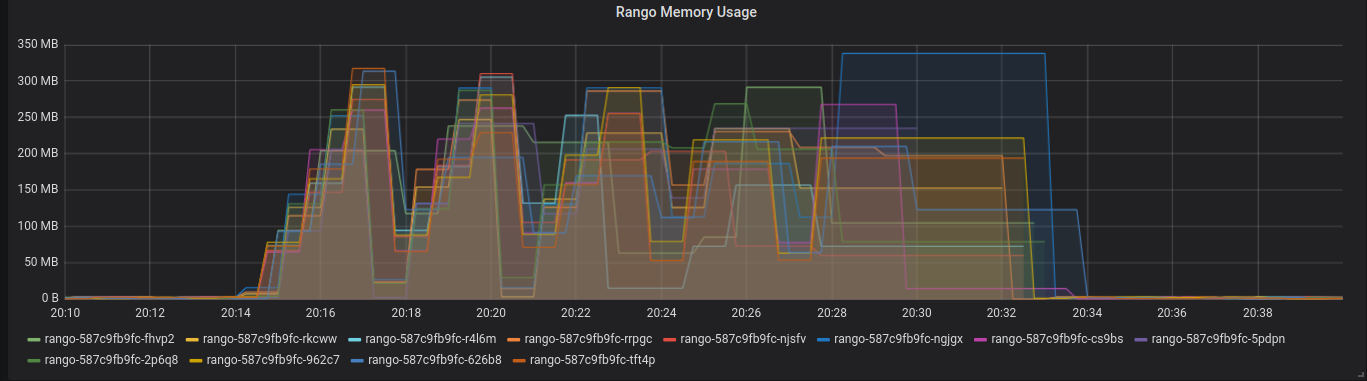

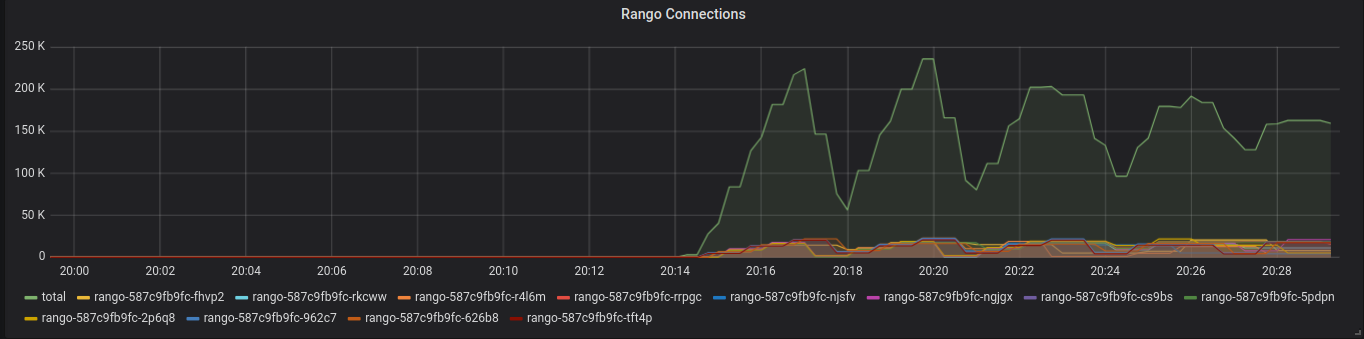

Test C
